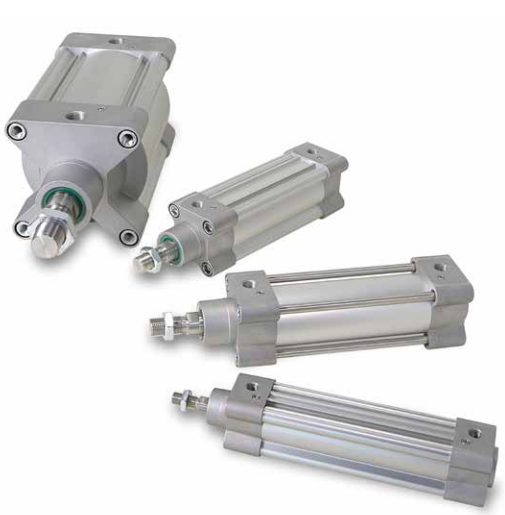

P1F SERIES Standard Cylinders ISO 15552

P1F SERIES Standard Cylinders ISO 15552Technical Data
Product type Standard cylinder according to ISO 15552

Bore size 32 – 125 mm

Stroke length 5 – 2000 mm

Versions Double acting

Cushioning Adjustable air cushioning

Position sensing Proximity sensor

Installation ISO cylinder and piston rod mountings


  • Smooth profile or tie-rods design
  • Bore sizes 32 – 125 mm
  • Corrosion resistant design with end plates and barrel in

sandblast and anodized aluminum

  • Magnetic piston standard
  • Polyurethane seal technology inside
  • Cushioning stainless steel screws on same side
  • New adjustable pneumatic and mechanical cushioning

system reduces the noise caused by the impact of the

piston on the end covers (standard)

  • Full range of mountings available
  • Full range of ‘drop-in’ sensors available
